Description

ABOUT 614 SERIES CENTRIFUGE

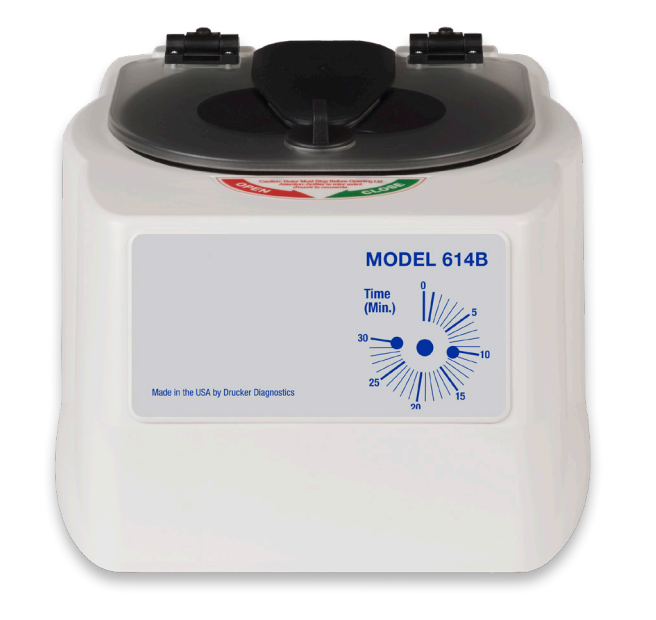

The 614B Series Centrifuge is a compact and reliable centrifuge designed for basic physician’s offices and clinical laboratories. It features a single-speed, six-place fixed-angle rotor that efficiently processes samples while maintaining a small footprint. Built for safety and durability, it includes a lid safety switch, a positive mechanical lid latch to prevent debris escape, and a clear, shatterproof lid for easy sample observation and optical calibration. Its reinforced side walls, made from glass fiber-reinforced nylon and high-impact polycarbonate, provide dual-layer protection. The centrifuge comes complete with a six-place fixed-angle rotor and universal tube holders.

Details:

Description: 6-place Fixed Angle Centrifuge, Up to 15 mL Tubes, Timer
Includes: 6-place Fixed Angle Rotor, Tube Holders
Type: Fixed Angle Centrifuge
Capacity: 6 x 15 mL
Max. RCF: 1,100 x g
Max. Speed: 3,250 rpm
Profile (Acceleration/Braking): Max Accel: 30 sec., Max Decel: 40 sec.
Product Line: 600 Series
Height (English) Exterior: 8.75 in.
Height (Metric) Exterior: 22 cm
Length (English) Exterior: 14 in.
Length (Metric) Exterior: 36 cm
Safety Features: Positive Lid Latching, Clear Shatter Proof Lid, Reinforced Side Walls
Timer: Mechanical
Width (English) Exterior: 11.75 in.
Width (Metric) Exterior: 30 cm
Rotor: 6-place Fixed Angle
Controller Type: Timer
Model: 614B
Ventilated: Yes
Weight (English): 12 lb.
Weight (Metric): 5.4 kg
For Use With (Application): Clinical
Quantity: 1 Ea.
Maximum Force Range: 1,000 to 1,999 x g
Maximum Speed Range: 3,000 to 3,999 rpm
Rotor Included: Yes
Dimensions: (HWD) 8.75 x 11.75 x 14 in. (22.2 x 29.8 x 35.6 cm)
Net Weight: 12 lb. (5.4 kg)
Run Time: 1 to 30 min.
Frequency: 50/60 Hz
Voltage: 115 V
